Fume Dog - 20 Welding Booth Package - (FD-WB-55-20PAK)

Fume Dog - 20 Welding Booth Package - (FD-WB-55-20PAK)

In stock

Regular price $38,770.00
Sale price $38,770.00 Regular price $55,400.00
Sale Sold out

Product Description

Introducing our Heavy Duty Welding Booth 20 PACK. Crafted with precision and durability in mind, our welding booth boasts 12-gauge, powder-coated construction, ensuring it stands up to the toughest tasks.


Key Features:

  • Quick Shipping: Ready to get to work? Our welding booth ships within 24 to 48 hours, so you can start welding in no time.
  • Georgia-Made: Support American craftsmanship – our booths are proudly manufactured in the USA.
  • Built to Last: Constructed with heavy-duty 12-gauge materials and coated with a robust powder finish, this welding booth can handle whatever you throw at it. In fact, it's so tough that you can even take a sledgehammer to it!
  • Optional Weld Fume Extractor: Upgrade your workspace with our optional 1,200 CFM Booth Mounted Weld Fume Extractor. Breathe easy knowing you can maintain a clean and safe environment.
  • Customization Options:
    • Light Kit: Illuminate your workspace with our optional light kit.
    • Red Alert Light: Students can easily get the instructor's attention with the Red Alert Light.
    • J-Hooks: Conveniently hang your welding gear with our J-Hooks.
    • Tool Tray: Keep your tools organized and within reach with the optional tool tray.
    • Welding Curtain and Rod: Enhance safety and containment with the welding curtain and rod.
  • Special Packages for Schools: Explore our welding booth packages designed for schools, offering savings of 30% to 40%. Click here for details.
  • Free Welding Lab Designer: Design your own welding lab with our free lab designer tool.
  • Sample Labs Available: Curious about our welding booths in action? Take a 3D tour of one of our sample labs now.

Upgrade your welding experience with our Single Welding Booth – the ultimate combination of strength, efficiency, and American craftsmanship.

Plain English Description

Plain English:- In stock, ships within 24 to 48 hours.

-Made in the USA- You can avoid explaining to your students why they are learning to weld on equipment built by their competitors.

- A 12-gauge, 5 x 5 Welding Booth (custom sizes available)

- Options include:
- A Red Alert Light that students can toggle to get the instructor's attention.
  - J-Hooks
  - Table
  - Tool Tray
  - Welding Curtain and Rod

- Includes fire resistant paneling.

- Optional Fume Extraction to complete your lab without the need of an expensive central system.

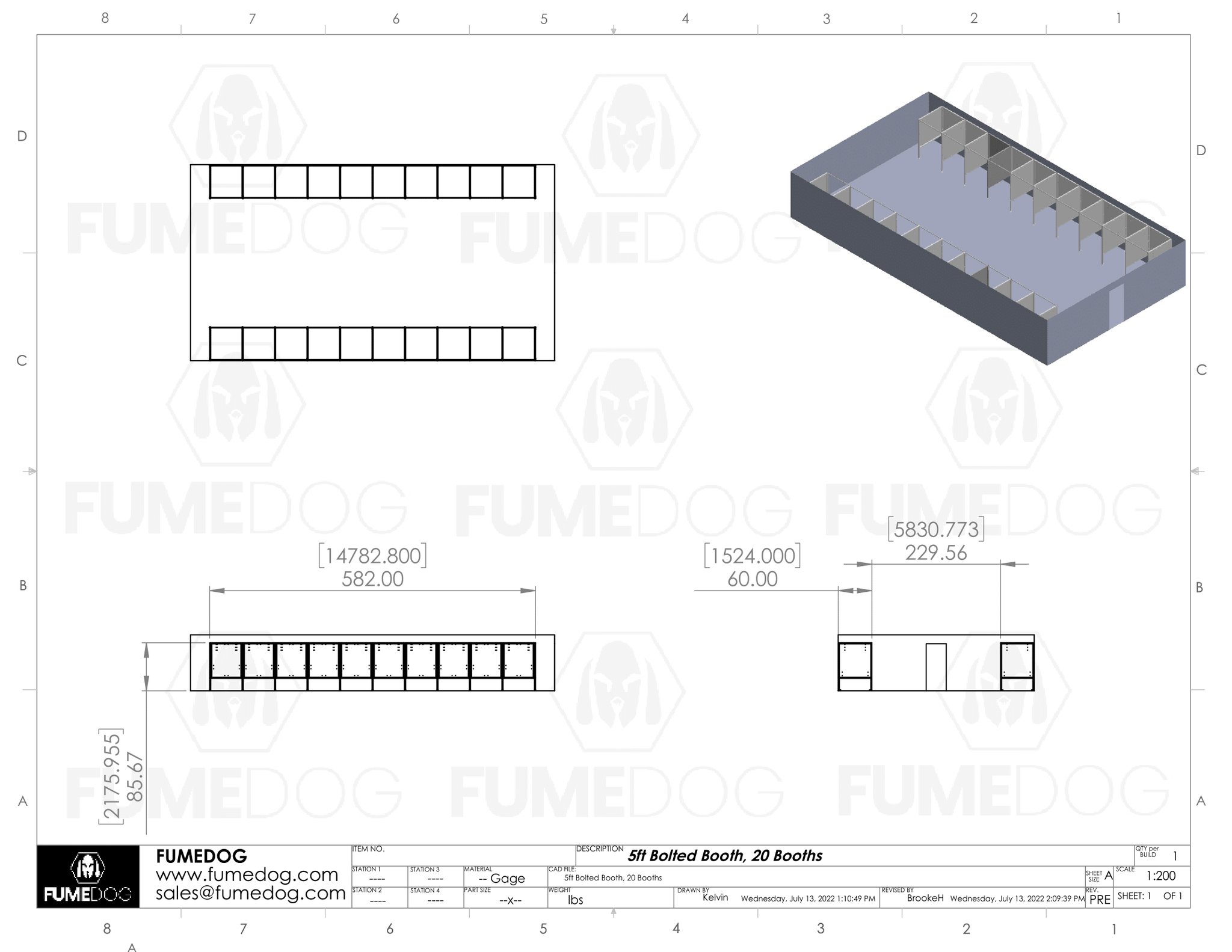

-We offer free design, drawings, and specification guides.Corporate Speak:- Welding Booth includes our ENDURA-TECH-LAST-STEEL that we use to make some square tubing and sheet metal welded together sound fancy!

- When paired with a Fume Dog unit Welding Booths use our ULTRA MEGA EXTREME capture system to capture all the dust and fume in your workspace.

- Optional articulated steel fume arm designed for unprecedented 360 degree swing action.

Technical Specifications

Size: 5 ft x 5 ft (custom sizes available)

Finish: Black Powder Coat (custom available)

Power: 120v / 1ph

Fume Dog Warranty

We don't sell broken stuff, but in case our competitors manage to break into our plant and sabotage our equipment, the below warranty applies.

As the original purchaser, we guarantee that your Fume Dog extraction system will remain free from defects in material within one year of its original purchase. If such defects appear under normal usage, we will repair or replace your product at no cost to you. Please refer to the Owners Manual for more information about our One Year Limited Warranty.

  • Flexible Payment Terms available at checkout
  • Ships in 24 to 48 hours (same day if ordered by 11 am)
  • Ships from GA
View full details

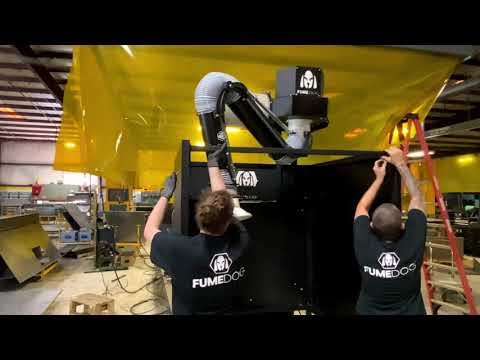

THE ANATOMY OF THE FUME DOG BOOTHS

12 GA STEEL CONSTRUCTION

The 12-gauge steel welding booth provides robust durability and strength, ensuring reliable and safe welding process.

OPTIONAL FUME ARM

Whether you are looking for a Standard or Magnetic arm both are possible to install in our welding booth.

See Standard: Bulldog FILT

See Magnetic: Bulldog FILT FLEX

Choose from 8”D or 6”D

OPTIONAL WELDING CURTAIN AND ROD

The optional welding curtain and rod offer a versatile solution for creating a designated welding area. Crafted with high-quality materials, the curtain provides a protective barrier, while the accompanying rod ensures easy installation, making it an essential accessory for a safe and efficient welding environment.

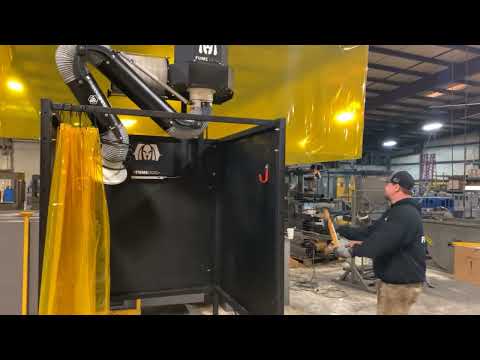

OPTIONAL BOOTH MOUNTED WELD FUME EXTRACTOR

1,200 CFM, 1.5 HP Motor

Filtered or Exhaust.

Airflow: 1200 CFMMotor:1.5

HP Power:120v / 1ph

Dimensions (in) 45" x 24" x 23" (without arm)

Weight (lbs) 215 (no arm)

Fume Dog - 20 Welding Booth Package Image 12

Other products you might need

Fume Dog - Single Welding Booth Image 3

Single Welding Booth

FD-WB-55

$2,770.00

Fume Dog - Alert Light for Welding Booth

Fume Dog - Alert Light for Welding Booth

$150.00

Fume Dog - Light Kit for Welding Booth Image 2

Fume Dog - Light Kit for Welding Booth

$99.00

Standard Fume Extraction Arm / Snorkel

FD-xxx

Standard Fume Extraction Arm / Snorkel

$992.00

FAQ

Frequently Asked Questions About Welding Fume Extractors

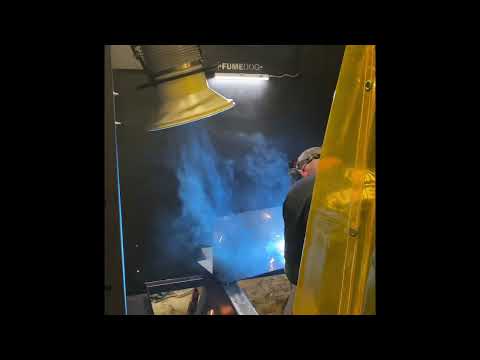

What Is a Fume Extractor?

A fume extractor is at heart a simple machine. Dirty air is sucked up at the fume arm (snorkel), drawn through to the filter, and then clean air passes through the fan and out the exhaust.

Though simple in concept, the craftsmanship and knowledge required make it more difficult in execution than it would seem. Different particles (fume and dust) require different filters of varying degrees of efficiency. Getting the ideal airflow so that the fume can be extracted from while not pulling the shielding gas requires careful consideration.

At the end of the day, a weld fume extractor sucks dirty air in and exhausts clean air so you don’t inhale dangerous, cancer-causing fumes.

How Does a Portable Fume Extractor Work?

Essentially, portable fume extractors are devices that use fans to draw welding fumes and dust particles into a confined filtration system using negative airflow. This process will remove any hazardous gases and airborne particles from your environment. You will be able to move this fume extractor to any room of your choosing.

What Is the Difference Between Portable Smoke Eaters and Regular Ambient Air Cleaners in the Industry?

A smoke eater is specifically made to help remove cigarette smoke, cigar smoke, cannabis smoke, or vape smoke, which makes it different from other home air purifiers.

Ambient air cleaners are useful additions to fume extractors, but they shouldn't be used as the primary way to manage fumes. Due to the way ambient air cleaners work, fumes must first pass by a welder's breathing area before settling into the ambient unit's collection zone.

As a result, the welder is exposed to the same amount of hazardous welding fumes as if the extraction equipment were not there at all.

If I Have Multiple Stations, Can I Turn Off the Airflow to a Single Station?

The airflow to a certain station can be adjusted depending on which accessory arms are being used with the system. An operator can cut off the airflow to a single station using the adjustable airflow control that is included with the 2-inch metal flex arms and articulated arms.

What Is the Life of the Fume Extraction Filters?

To be specific, the answer is it depends. Wire size? How many shifts? Mild Steel? Is the steel oily? A lot of questions need to be asked to give an exact answer.

That said, you’ll generally get about a year of filter life assuming clean steel, .045 wire size, and one shift a day with an average 35% under the hood time. That is of course if you are using our cleaning system at least once a week.

How Often Should I Clean My Fume Extractor Filters?

Depending on the kind of portable fume extraction system you have, you will need to use the cleaning system and empty the dust tray on a weekly basis. The tray gathers airborne particles in addition to those from the extracted fumes. In order to prevent buildup, you need to empty the dust pan.

How Do I Choose a Fume Extractor?

1. How much are replacement filters?

- Most companies in this business want to sell you replacement filters, not a fume extractor. Prices upward of $400-$600 are common, most people don’t know to ask.

2. What is the diameter of the fume arm?

- If they say 6”, don’t believe them when they say the performance is 1,200 CFM

3. What is it made of?

- Don’t buy something made of plastic that is used around welding.
